Scripted dynamic buttons: icon sizes?

Help & Support
1

I wanted to replace a dynamic button on my vertical toolbar that shows all the folders of the current directory I’m in. The following button command

Go CURRENT FOLDERCONTENT="showempty,noparselinks,norecurse,nofiles,maxdirs=100,maxwidth=25"

does not offer the full range of possibilities of scripting. With a scripted dynamic button - this relatively new feature introduced some half year ago or so - a lot more is possible. For instance I can show ‘pinned’ folders (folders having an Opus ‘pinned’ label) on top of the rest of the folders.

But I encountered a problem. If I don’t use icons, the entries cannot be properly aligned so it seems. Below are both solutions active on my vertical toolbar - the FIRST one is the new, scripted solution (with 3 pinned folders on top), the second one is the old solution:

buttons1
buttons1178×484 57.4 KB

Problem is that the folder names are not aligned properly. Unfortunately, in Opus this can only be done by activating an icon. But doing so creates a different problem:

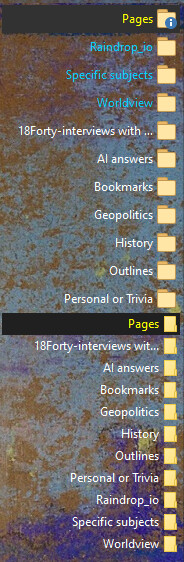

buttons2
buttons2184×562 65 KB

This is the result of adding the following properties to the button objects for each subfolder:

button.showlabel = 'left';
button.image="#folder";
button.showimage=true; //true or false, "dual", "large", or "largedual".

Setting showimage to ‘true’ created a smaller image than using the value “dual” or anything else (which make the icon size only higher), but even the smalles one causes a lot of space being wasted if you compare it to the old solution (the second part) in the toolbar).

Is there a solution or workaround for this? Is it a bug?

2

You're using the internal icon set, which is 20x20 vs shell icons which are 16x16.

If you want a smaller folder icon you can use the default Windows one with %SystemRoot%\System32\shell32.dll,3 or just pass the full path of the folder itself to get the shell icon for each individual folder.

3

Passing the path works indeed and solves the space issue. Showimage must still be set to true, not to ‘dual’ or anything else (which still shows a big icon).

button.showlabel = 'left';
button.image=path;
button.showimage=true; //true or false, "dual", "large", or "largedual".

Still, I wonder why this is so incongruous compared to straightforward buttons or even “Go FOLDERCONtENT”, where no such trouble exists. The latter even automatically picks up the alternative icon I define for a folder:

buttons1

This is not the case with the above solution for programmed dynamic buttons:

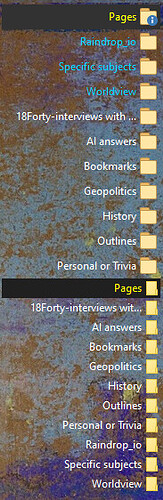

buttons2

Maybe there’s an additional parameter to add to the path, @Jon ? Clearly there’s something with this programmed buttons implementation which is out of order.

I’m not letting my sleep over this - your solution solved the loss of space, that’s what mattered the most. Thanks a lot - solution accepted.

Thanks
