How to modify the width of the columns of a ListView?

dasota · June 17, 2025, 9:28am

Is it possible to change the width of a ListView's columns? I'm trying to change the values to width, but it doesn't work. Thank you very much.

==SCRIPT RESOURCES
<resources>
	<resource name="dialog1" type="dialog">
		<dialog height="262" lang="esm" standard_buttons="ok,cancel" title="Renombrar" width="348">

         <!-- Panel vista previa -->
			<control header="yes" height="69" name="vista_previa" title="Vista previa" type="group" width="340" x="4" y="165" />
			<control enable="no" fullrow="yes" height="64" name="listview1" type="listview" viewmode="details" width="340" x="4" y="176">
				<columns>
					<item text="Nombre actual" width="100" />
					<item text="Extensión" width="30" />
					<item text="Nombre futuro" width="100" />
					<item text="Extensión" width="30" />
				</columns>
			</control>

Jon · June 17, 2025, 10:44am

Use the Control.SetItemWidth method.

dasota · June 17, 2025, 3:02pm

Thanks for replying, but I tried the following, but the columns still don't change their widths.

dlg.Show();

dlg.Control("listview1").SetItemWidth(0, 100); // Nombre actual
dlg.Control("listview1").SetItemWidth(1, 30);  // Extensión
dlg.Control("listview1").SetItemWidth(2, 100); // Nombre futuro
dlg.Control("listview1").SetItemWidth(3, 30);  // Extensión

<control enable="no" fullrow="yes" height="64" name="listview1" type="listview" viewmode="details" width="340" x="4" y="176">
		<columns>
			<item text="Nombre actual" />
			<item text="Extensión" />
			<item text="Nombre futuro" />
			<item text="Extensión" />
		</columns>
</control>

errante · June 17, 2025, 3:17pm

Do you want to "autosize" the columns or set them to a specific width?

var lv =  dlg.Control("listview1");
var columns = lv.columns;
//to autosize all columns
columns.autosize();
//to set the column 0 to a desired width (20)
columns.GetColumnAt(0).width = 20;

More info:

Leo · June 17, 2025, 3:18pm

You'd normally resize the columns before showing the dialog.

If dlg.Show is modal (which depends on details we can't see from the code snippet) then the code as it is will be resizing the columns after the dialog has closed, which definitely isn't what you want.

dasota · June 17, 2025, 10:41pm

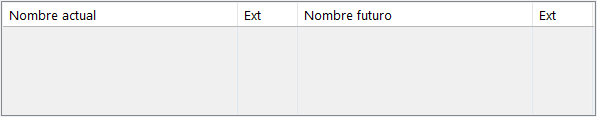

Many thanks @Jon, @Leo and especially @errante, both methods worked very well, but I ended up choosing a fixed width:

var lv =  dlg.Control("listview1");
var columns = lv.columns;

columns.GetColumnAt(0).width = 235;
columns.GetColumnAt(1).width = 60;
columns.GetColumnAt(2).width = 235;
columns.GetColumnAt(3).width = 60;
